Baghouse dust collector

Inquiry
sinonine@9silica.com
+86-25-58875679
+86-18118821087
JHQM series high efficiency air case pulse-jet type bag house dust collector integrated sectional reverse blow, pulse jet cleaning and other advantages of all kinds of bag type dust collector, overcome the chamber cleaning’s poor strength, shortcoming of pulse blowing needing filtering simultaneously, with feature of overall cleaning room . This series of dust collector using large pulse valve cleaning, with strong cleaning ability, good effect, long service life, can be widely used in building materials, metallurgy, machinery, chemical industry and refractory materials, especially suitable for the dust collecting system of crushing, packaging, silo roof ,clinker cooling in cement plant and suitable for the dust collecting system of various grinders. It can also be used for coal grinding dust after changing the corresponding structure.

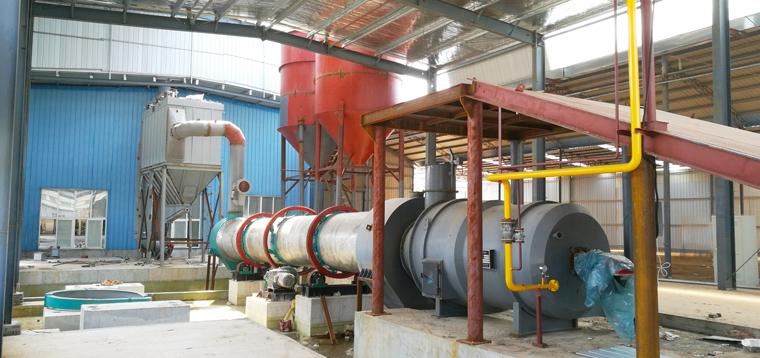

dust collector

Features and technology advantages of dust collector

1.The ash cleaning principle is advanced, without blowing pipe, but the pulse valve is installed in the side wall of the box or the top cover, let the cleaning air is injected into the upper box and the space gas pressurization, and the energy transfer to the bag to achieve cleaning; and change the bag operation eliminates the need for dismantling and installing the blowing process, easy to replace the filter bag.
2.Using large pulse valves, reducing the number of pulse valves, thereby reducing the workload of the pulse valve maintenance.
3.The off-line sectional reverse blow pulse cleaning technology, which can avoid the on-line cleaning dust generated by the two flying "adsorption", and does not affect the normal continuous operation of the equipment running, improve cleaning efficiency, prolong the service life of the filter bags.
4.To adapt to the high concentration of dust, such as O-Sepa separator, the grinding system air dust concentration up to 1000g/Nm3.
5.The air tank structure is adopted to reduce the local gas resistance loss of equipment.

Working principle  of dust collector
Under the action of the draught fan, the dust air enters from the air inlet filter into the hopper through the inclined baffle, at this time due to the slow speed of airflow, under the action of inertia force and gravity, coarse particles of dust fall into ash hopper. Small dust particles with air enter the filtering chamber, by the filter-bag’s purification, dust is attached to the outer surface of bag, and the purified air comes through the filter bag into the upper clean room, all clean air gathers in clean room, sucked by the main fan of dust removal system and discharged into the air from the air outlet.

Specification  of dust collector


Model Capacity
(m3/h)
Filtering air speed
(m/min)
Filtering area
(m2)
Chamber Qty. Bag
Qty.
heat preservation area
(m2)
Inlet  dust concentration (g/Nlm3) Discharge concentration
 (g/Nlm3)
Ash cleaning air consumption (Nm3/min)
JHQM32-3 6900 1.0-2.0 93 3 96 26.5 <1000 <0.05 0.27
JHQM32-4 8930 1.0-2.0 124 4 128 34 <1000 <0.05 0.37
JHQM32-5 11200 1.0-2.0 155 5 160 41 <1000 <0.05 0.46
JHQM32-6 13390 1.0-2.0 186 6 192 48.5 <1000 <0.05 0.55
JHQM64-4 17800 1.0-2.0 248 4 256 70 <1000 <0.05 1.2
JHQM64-5 22300 1.0-2.0 310 5 320 94 <1000 <0.05 1.5
JHQM64-6 26700 1.0-2.0 372 6 384 118 <1000 <0.05 1.8
JHQM64-7 31200 1.0-2.0 434 7 448 142 <1000 <0.05 2.1
JHQM64-8 35700 1.0-2.0 496 8 512 176 <1000 <0.05 2.4
JHQM96-4 26800 1.0-2.0 372 4 384 110 <1000 <0.05 1.2
JHQM96-5 33400 1.0-2.0 465 5 480 120 <1000 <0.05 1.5
JHQM96-6 40100 1.0-2.0 557 6 576 130 <1000 <0.05 1.8
JHQM96-7 46800 1.0-2.0 650 7 672 140 <1000 <0.05 2.1
JHQM96-8 53500 1.0-2.0 744 8 768 150 <1000 <0.05 2.4
JHQM96-9 60100 1.0-2.0 836 9 864 160 <1000 <0.05 2.7
JHQM96-10 66900 1.0-2.0 929 10 960 175 <1000 <0.05 3.0
JHQM96-12 80700 1.0-2.0 1121 12 1152 210 <1000 <0.05 3.4
JHQM96-14 94100 1.0-2.0 1308 14 1344 215 <1000 <0.05 4.2
JHQM96-16 107600 1.0-2.0 1494 16 1536 280 <1000 <0.05 4.8
JHQM96-18 121000 1.0-2.0 1681 18 1728 315 <1000 <0.05 5.4
JHQM96-20 134500 1.0-2.0 1868 20 1920 350 <1000 <0.05 6.0
JHQM128-6 67300 1.0-2.0 935 6 768 125 <1300 <0.05 3.6
JHQM128-9 100900 1.0-2.0 1402 9 1152 196 <1300 <0.05 5.4
JHQM128-10 112100 1.0-2.0 1558 10 1280 205 <1300 <0.05 6.0
JHQM128-12 134600 1.0-2.0 1869 12 1536 223 <1300 <0.05 7.0
JHQM128-14 157000 1.0-2.0 2181 14 1792 247 <1300 <0.05 8.3
JHQM128-16 179400 1.0-2.0 2492 16 2048 262 <1300 <0.05 9.5
JHQM128-18 210900 1.0-2.0 2804 18 2304 277 <1300 <0.05 10.7
JHQM128-20 224300 1.0-2.0 3115 20 2560 292 <1300 <0.05 12
JHQM128-22 247600 1.0-2.0 3427 22 2816 307 <1300 <0.05 13.1
JHQM128-24 269100 1.0-2.0 3738 24 3072 322 <1300 <0.05 14.3
JHQM128-26 291600 1.0-2.0 4050 26 3328 337 <1300 <0.05 15.5
JHQM128-28 314000 1.0-2.0 4361 28 3584 352 <1300 <0.05 16.7


Why choose sinonine?

We are the first and only company in China that can provide the turnkey project service- EPC service for quartz/silica sand processing plant. We can provide quartz/silica sand production equipment with high cost-effective. We have many silica sand production operating around the world including 46 manufacturers of quartz/silica sand, 12 glass manufacturers, 6 traders, 16 engineering companies and more than 22 construction companies.

Learn more about our services
Comments and suggestions

In the process of producing the Silica/quartz powder, the uniform fineness is obtained at the same time the iron contamination should be avoided. Sinonine has fully considered the processing needs of quartz powder in the whole system, and modified the traditional equipment to meet the needs of processing silica powder. The working efficiency of Sinonine quartz/silica sand ball mill and airflow classifier is very high, and the two kinds of equipment cooperate perfectly. At the same time, in order to avoid dust pollution, bag-type dust collector is employed for dust removal. The whole system is produced under negative pressure, which is very environmentally friendly.
