Spiral sand washing machine

Inquiry
sinonine@9silica.com
+86-25-58875679
+86-18118821087
Spiral sand washing machine manufactured by our company is specially designed and manufactured for washing, classifying and dewatering of sand and Silica sand. Its unique sealing structure and adjustable overflow weir plate ensure the high efficiency and long service life. .It is suitable for sand plant, construction, hydropower station, concrete dam site, glass manufacturing industry, foundry industry, oil well development industry.

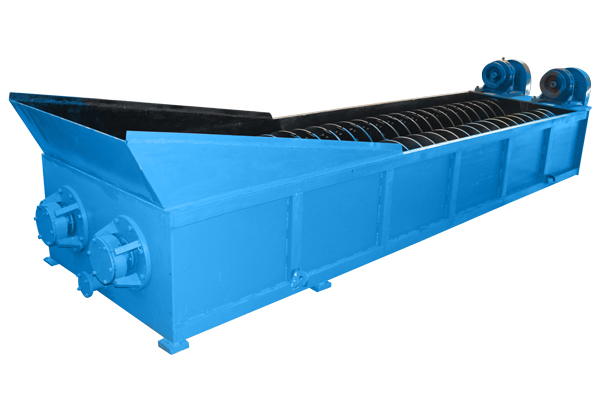

spiral sand washing machine
Features and technology advantages of spiral sand washing machine


1. Stable operation, high efficiency and durability, and low energy consumption;
2. Have the functions of cleaning, dewatering and classification;
3. High cleaning degree, less material loss.
spiral sand washing machine
Working principle of spiral sand washing machine

The main part is installed by 18 ° inclination, under the sink is a sedimentation tank composing of three weir plates.The screw head immerges in the sedimentation tank, and the screw is driven by the motor and continuously rotated, and the water is fed by the porous plates installed at the bottom of the sedimentation tank.The clean water entering by the porous plates forms the rising water, which brings the impurities with small specific gravity to the surface and overflow the weir plate to finish the cleaning.The larger particles sink into the tank body, and the screw blades push up the sand. As the upper part of the tank is above the water level, in the process of upward propulsion, the excess water of sand is removed, and the water that comes out flows into the sedimentation tank from the other side of the drain at the bottom of the tank. The classification of materials is achieved by fine particles overflowing over weir plaes which do not meet the standards.The control method is to adjust the height of overflow weir plates and adjust spiral speed.

Specification of spiral sand washing machine

Model Screw diameter (mm) Sink length (mm) Capacity (t/h) Input Size (mm) Power (kw) Water consumption (t/h) Weight (t)
SL500 500 7150 10-15 <10 5.5 6-60 4.6
SL750 750 7585 10-20 <10 11 10-80 6.5
SL915 915 7585 20-30 <10 15 20-120 8.6
SL1200 1200 8400 30-50 <10 18.5 30-150 11.2
SL1500 1500 9500 30-60 <10 18.5 30-150 13.8

Why choose sinonine?

We are the first and only company in China that can provide the turnkey project service- EPC service for quartz/silica sand processing plant. We can provide quartz/silica sand production equipment with high cost-effective. We have many silica sand production operating around the world including 46 manufacturers of quartz/silica sand, 12 glass manufacturers, 6 traders, 16 engineering companies and more than 22 construction companies.

Learn more about our services
Comments and suggestions

Spiral sand washing machine has its own unique advantages and it is especially suitable for silica sand cleaning. I have used the Spiral sand washing machine produced by Sinonine for two years. The structure design can make the cleaning more fully, especially for the production of high purity quartz sand, its adaptability is particularly strong. The equipment provided by Sinonine is excellent in both internal quality and external appearance. With such reliable main equipment playing its role, my whole quartz sand production line runs smoothly.
