Trommel screen

Inquiry
sinonine@9silica.com
+86-25-58875679
+86-18118821087
Trommel screen is a kind of screening equipment which classifies materials according to their particle size. It is commonly used in the classifying and screening of medium and fine materials to control the particle size of materials. In silica sand production line, tormmel screen is often used in combination with hydraulic classifier to control large particle materials.

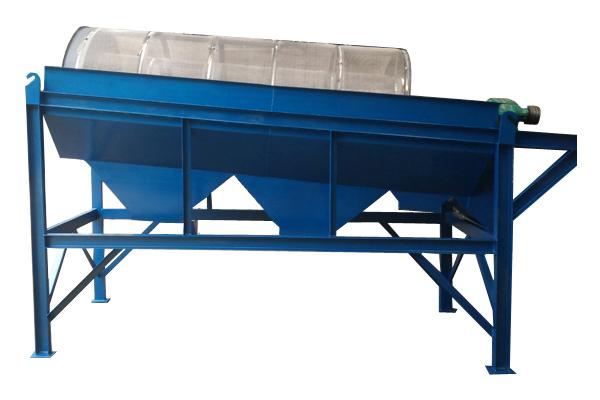

trommel screen
Working principle of trommel screen
Trommel screen is mainly composed of motor, reducer, trommel, rack, seal cover, inlet and outlet, etc. The trommel is mounted on the rack at an Angle.The motor is connected with the drum device by a reducer through a coupling, and the trommel is driven to rotate around its axis. When the material enters into the trommel, due to the tilt and rotation of the trommel, the material on the screen surface is turned over and rolled, so that the fine material is discharged through the outlet at the bottom of the back end of the trommel, and the coarse particle material and impurities are discharged through the outlet at the end of the trommel.
Features of trommel screen
Trommel screen’s power is small, low energy consumption, there is a self-cleaning device, screen hole is not easy to be blocked;
Small occupation space, low investment cost, stable and reliable operation, high screening efficiency, large output;
Simple process layout, easy installation and maintenance, easy operation;
Strong adaptability to materials, high viscosity and humidity and other properties of materials can be screened;
Central screen has good wear resistance, long service life and convenient replacement.
Specification of trommel screen
Model Capacity (m3/h) Trommel external Dia. (mm) Trommel length (mm) Power (kw)
GTS06 5-10 Φ600 1.2m-2.8m 0.75
GTS08 8-15 Φ800 1.5m-2.8m 1.5
GTS10 15-30 Φ1000 1.5m-3.0m 2.2
GTS12 20-50 Φ1200 1.5m-3.5m 3
GTS15 40-80 Φ1500 1.5m-4.2m 5.5
GTS18 80-150 Φ1800 1.5m-4.5m 7.5
GTS20 130-200 Φ2000 1.5m-5.5m 11

Why choose sinonine?

We are the first and only company in China that can provide the turnkey project service- EPC service for quartz/silica sand processing plant. We can provide quartz/silica sand production equipment with high cost-effective. We have many silica sand production operating around the world including 46 manufacturers of quartz/silica sand, 12 glass manufacturers, 6 traders, 16 engineering companies and more than 22 construction companies.

Learn more about our services
Comments and suggestions

The process of High purity quartz sand has high requirements for classifying equipment, and high efficiency equipment can be an important guarantee for the operation of the project. Sinonine not only meets my requirements for high quality equipment, but also meets my requirements for cost performance. The cooperation between Sinonine and me will be maintained for a long time. I currently use the Hindered settling machine and Trommel screen with very stable operation, fully automatic production, and the operation cost is very low. The size range of quartz sand grading can be adjusted, it is a very perfect set of equipment.
