Air Classifier

Inquiry
sinonine@9silica.com
+86-25-58875679
+86-18118821087
The air classifier is mainly used to control the particle size of silicon powder . It is often used with ball mill to form a silicon powder production line, and can be used alone to classify mixed powder materials with different particle sizes.The machine is composed of main machine, cyclone dust collector, impulse dust collector, draught fan, control system, etc.

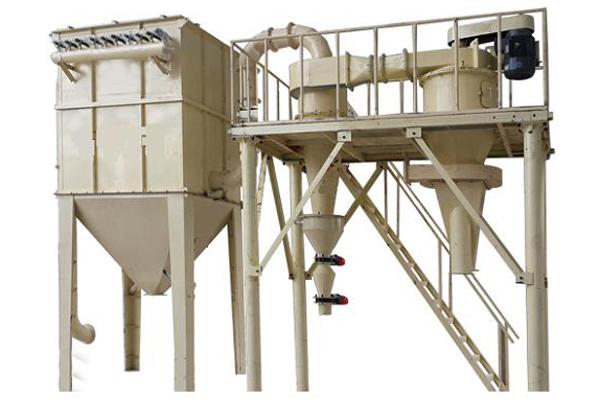

Air Classifier

Features and technology advantages of air classifier
1. High classification accuracy, high purity and no pollution;The structure of classifier is specially designed with high classification accuracy and strict control of large particles.
2. Wide range of classification;The particle size can be freely adjusted through the grading of the impeller speed and the air volume of the draught fan to obtain the required products. It has a wide range of classification of 3-50 microns.
3. High grading efficiency; Adopting low rotating speed vertical single impeller classification structure, the material flow field is stable, the equipment processing capacity is large, the classification efficiency is high, may reach above 90%.
4. It can be used in series for multiple levels, and the products of several particle size segments can be classified at the same time to obtain ideal particle size distribution.

Working principle of air classifier
The air classifier is a forced classifier with secondary air intake and vertical big impellers. The materials under the action of suction fan enter through the lower body, and rise to the grading section, as a result of the high-speed rotation of grading impellers, the material particles is under the centrifugal force produced by the rotation of the impeller and centripetal force caused by induced draft fan, when the centrifugal force is greater than the centripetal force, the coarse particles is flung to the cylinder along the wall fall. the secondary air enters through the air inlets evenly distributed on the cone, fine powder mixed with or adhering to the coarse particles is separated clean by the wind screen. The coarse material after classfication is collected by the unloading device and discharged. The fine powder below the grading diameter is collected by the cyclone collector and pulse dust collector along with the gas-solid two-phase flow, and the purified gas is discharged by the induced fan.

Specification of air classifier
Model Capacity(kg/h) Efficiency of classification Particle size(um) Sieving rate Power(kw)
SSF010 10-50 70-90% 3-50 D97 7
SSF 020 50-350 70-90% 3-50 D97 15-19
SSF 050 100-800 70-90% 3-50 D97 25-30
SSF 100 300-1500 70-90% 3-50 D97 41-48
SSF 200 500-4000 70-90% 3-50 D97 63-73
SSF 400 2000-5000 70-90% 3-50 D97 97-20
SSF 500 3000-6000 70-90% 3-50 D97 110-30
SSF 600 4000-8000 70-90% 3-50 D97 140-169
SSF 800 6000-12000 70-90% 3-50 D97 170-210
SSF 1200 8000-20000 70-90% 3-50 D97 230-280

Why choose sinonine?

We are the first and only company in China that can provide the turnkey project service- EPC service for quartz/silica sand processing plant. We can provide quartz/silica sand production equipment with high cost-effective. We have many silica sand production operating around the world including 46 manufacturers of quartz/silica sand, 12 glass manufacturers, 6 traders, 16 engineering companies and more than 22 construction companies.

Learn more about our services
Comments and suggestions

In the production process of silica powder, it is very important to obtain silica powder with uniform particle fineness and avoid possible iron pollution caused by the equipment. Sinonine has fully considered the process needs of silica powder in the whole system, and modified the traditional equipment to meet the needs of processing silica powder.The working efficiency of Sinonine silica sand ball mill and air classifier is very high, and the two kinds of equipment cooperate perfectly. At the same time, in order to avoid dust pollution, bag-type dust collector is employed for dust removal. The whole system is running under negative pressure, pollution free and environmentally friendly.
