Sinonine sand washing plant can be applied to various sand production fields to clean, remove impurities, screen, grade, dewater. Sand products used in the different areas can be produced by different sand washing plants. Sinonine has developed a series of sand washing plants for construction, foundry, glass making, and oil fracturing, etc for processing different kind of sand, such as quartz sand, artificial sand, dune sand, river sand and other raw sand.
Construction sand washing plant

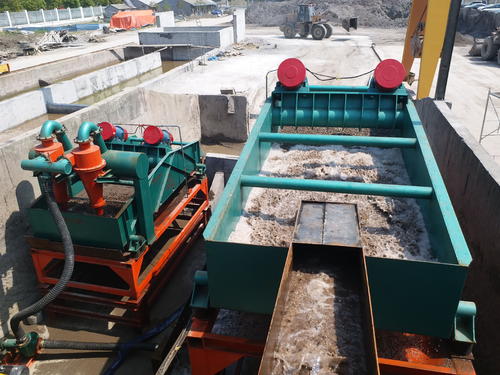

The crushed sand or river sand for construction has a particle size of about 0-4.75mm. It is necessary to clean the soil and recycle fine grained sand to finally get the finished construction sand that meets the needs of the construction industry. Construction sand washing plant mainly includes sand washing, fine sand recovery, dewatering, water treatment and other functional modules. Crushed sand or clay-bearing shall be washed by raw the sand washing machine for one or two stages, after washing the sand slurry is sent to the dewatering screen, sand slurry containing a certain amount of water then enters into the hydrocyclone for fine sand recovery, and the recovered fine sand is returned to the dewatering screen for dewater, the tailings is the final impurity containing soil and it is discharged into the thickner for water treatment.
Oil fracturing sand washing plant
Particl size specifications of conventional frac sand are divided into 20-40 mesh, 40-70 mesh, 70-120 mesh to meet the needs of different stages.The original sand by powerful attrition scrubber to remove impurities wrapped on the surface of sand , and then washed by the sand washer water to remove clay and other impurities, the cleaned sand is classified through hydraulic classifier to obtain sand products suitable for requirements of different particle size range, qualified sand products through the dewatering process to get dry finished frac sand products.
Glass sand washing plant
Ordinary glass sand requires Fe2O3 content less than 0.03% and its particle size is generally controlled between 100-600 microns. Raw sand is pre-cleaned and screened to remove part of impurities, and then enters the powerful attrition cells to scrub off the impurities wrapped in the surface, and then enters the hydraulic classifier for particle size classification, and sand slurry then enters the magnetic separators for iron removal, finally through dewatering and drying the glass sand products are obtained.
Foundry sand washing plant
Silica sand for foundry requires silica sand to be pure and without impurities, with a round grain shape, a content of SiO2 of around 94-98%, and a size of 50-150mesh. The raw sand suitable for making foundry sand is first screened to remove impurities, and then scrubbed and washed by a powerful scrubbing machine, and then washed by a sand washing machine. After washing, the sand slurry is classified by a hydraulic classifier, and then dewatered and dried to obtain foundry sand products.
Sinonine can provide a complete set of sand washing and purification solution and equipmets. In addition to the conventional treatment process mentioned above, It can also use particle size classification, strong magnetic separation, acid pickling and other technological processes according to the property of quartz sand to produce high-purity quartz sand products with different requirements.
Explore related Cases

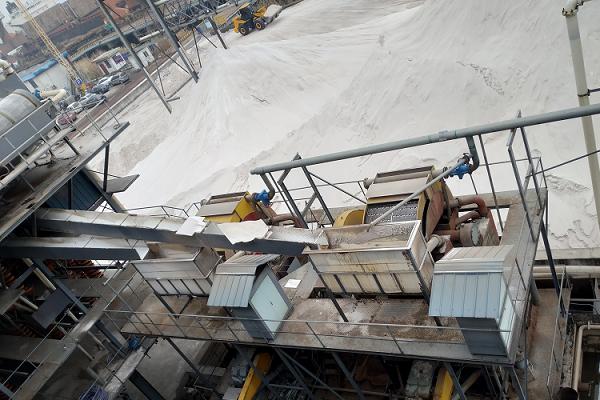

Huangshan annual output of 400,000 tons quartz sand washing production line
The production line produces quartz sand products used in a variety of industries, including high purity quartz sand for high-end glass and for manufacturing quartz crucible. The project technical requirements are high, Sinonine demonstrated each process of the final solution and obtained the optimal technical process through experiment and verification. The project has an annual output of 400,000 tons of quartz sand, and the products sell well. This project is a representative project of Sinonine EPC service, which typical demonstrates Sinonine's technical advantages and turnkey service ability. The advanced technical design, high-quality equipment, cost-effective solution and efficient project operation mode are highly recognized by customers.
Mongolia 450,000 tons per year glass quartz sand production line
The raw material of this production line is massive quartz stone. After crushing, screening and grinding, it enters into the classifying system for classification, and then the iron material is removed by magnetic separation and other processes. Finally, the glass quartz sand with higher purity is obtained after dewatering.The production scale of this production line is large, the product quality is very high, the product sells very well.
